Equalizer module for SX-ES64/84

3 bands equalizer module for SX-ES64/ES84 ,price per channel

SKU: 042521 Category:


The design of this powerful 3 bands semi-parametric equalizer is derived from previous models SX-S and SX-ST whose effectiveness and sonic transparency has been proven on the field for decades.

80Hz and 8KHz

These filters have a shelve curve. Bass and treble adjustments are controlled by the [80Hz] and [8kHz] knobs with a range of +/- 15dB.

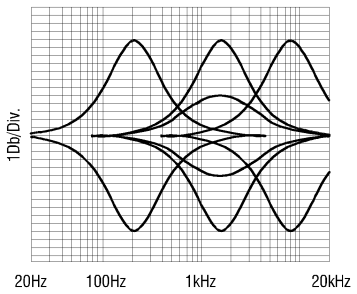

Semi-parametric (sweep frequency) equalizer with a broad fixed bandwidth. The upper knob progressively adjusts the central frequency from 200Hz to 8kHz, the lower knob adjusts the gain of the filter.
